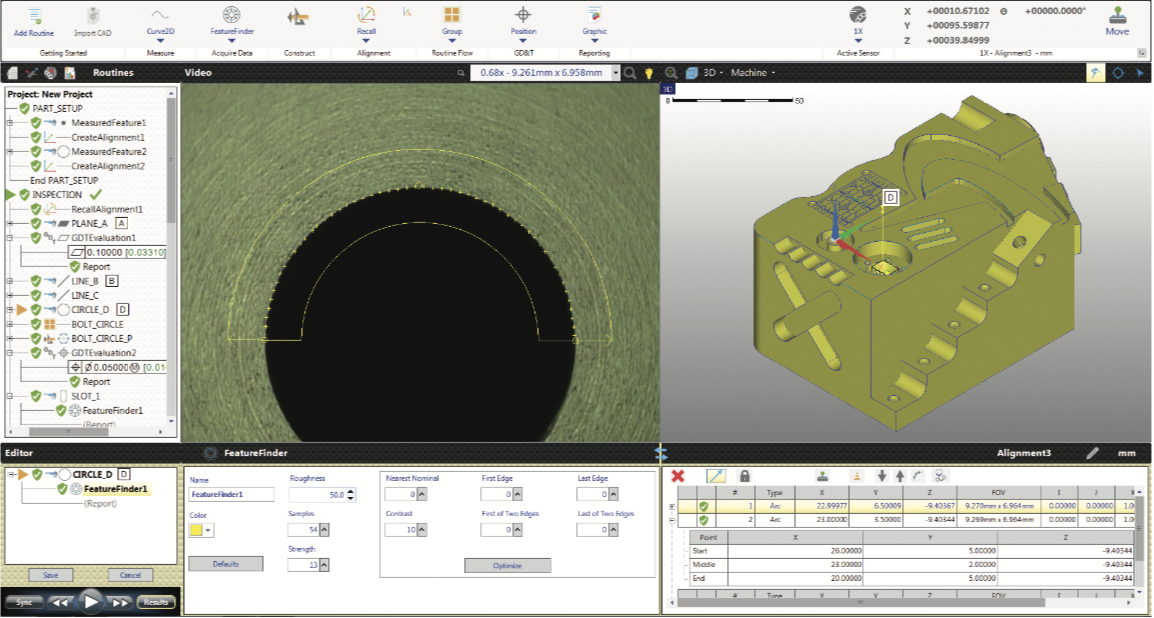

ZONE3 metrology software makes OGP SmartScope systems faster, easier to use and more productive than ever before.

Features:

  • Full routine programming from 3D CAD
  • Real-time kinematic model
  • ASME Y14.5 and ISO 1101 GD&T with animated tolerance zones
  • Interactive & dynamic graphical reporting
  • Probe Builder with live model
  • Alignment Assistance with Degrees of Freedom animation
  • SnapShotTM full- eld image processing

ZONE3 is capable.

Full multi- sensor capability, including built-in scanning laser and scanning probe support, GD&T and custom scripting.

ZONE3 is fast.

Synchronous image processing and high speed cameras allow entire scenes to be measured instantly.

ZONE3 is easy to learn.

The user interface is centered on the part’s 3D CAD model. Align- ments, measurements and constructions are shown graphically in real time. The same setup process is used for all sensors. Learn one, you’ve learned them all.

ZONE3 is available

exclusively from your OGP representative for OGP measuring systems. Contact us to learn more about how you can transform your SmartScope Flash, ZIP, or Quest.

]]> https://msimeasure.allanhawkins.net/zone3/feed/ 0 TurnCheck https://msimeasure.allanhawkins.net/turncheck/ https://msimeasure.allanhawkins.net/turncheck/#respond Tue, 03 Apr 2018 19:40:21 +0000 http://msimeasure.com/?p=1060

QVI TurnCheckTM Series-10 systems o er a fast, easy way to measure shafts, cylinders and other turned, ground or extruded parts. Just place the part and press GO. TurnCheck Series-10 systems are precision optical measuring instruments designed for shop oor environments. TurnCheck systems are rugged and reliable, accommodating parts up to 180 mm diameter by 800 mm in length. TurnCheck will scan and measure a part in seconds using its telecentric, large eld of view optical system. With 100 mm wide eld of view and vertical range of 400, 600 or 800 mm, TurnCheck Series-10 systems can handle just about any turned or ground part. TurnCheck software allows easy measurement of diameters, lengths, distances, angles, radii, form, position, cylindricity, and runout – and can output point data for external analysis.

Features:

  • Completely telecentric, large eld of view optical system
  • 100 mm maximum diameter and vertical range of 400, 600, or 800 mm
  • TurnCheck easily measures all critical dimensions of turned parts, from simple lengths and diameters to advanced pro le tting and form

A Rugged Design That Is Easy To Use

The movable tailstock assembly is designed to be easily operated with one hand for precision mechanical alignment of the workpiece. An optional live tailstock can be built into the base assembly, minimizing the cost of tooling for different size parts. Additional optional workholding kits that t into the spindle accommodate workpieces that do not have centers.

Integral Calibration & Thermal Compensation

Calibrating TurnCheck systems is simple. Just load the calibration master onto the machine and the system software does the rest. A complete calibration requires just a few minutes. As a system check, a master ring gage mounted to the spindle is measured at the start of each vertical scan. This check is part of the integral thermal compensation system that works to minimize the adverse effects of temperature variations on measurement accuracy.

Advanced Optics Make the Difference

TurnCheck Series-10 optics are designed to produce distortion-free images of any part over the full 100 mm field of view. The optics produce a truly telecentric image, preventing all stray light that could in uence measurements from entering the optical system. The illumination optics are carefully matched to the imaging optics to supply highly collimated light for nearly perfect back lighting of the workpiece.

Powerful Software

TurnCheck system software o ers advanced image analysis technology for high speed optical measurement. Automatic feature extraction immediately nds and measures all part features in a single scan. With vertical scans at speeds up to 100 mm/sec, TurnCheck offers fast and precise measurement of known and unknown parts without programming or a CAD model. TurnCheck o ers integral GD&T and best- tting, and can output all point data for external analysis or reverse engineering.

]]> https://msimeasure.allanhawkins.net/turncheck/feed/ 0 FlexPoint https://msimeasure.allanhawkins.net/flexpoint/ https://msimeasure.allanhawkins.net/flexpoint/#respond Tue, 03 Apr 2018 19:24:37 +0000 http://msimeasure.com/?p=1050

The QVI® FlexPointTM Floor Model Series CMMs are the new generation of large format multisensor measuring systems. Featuring high quality construction and a variety of sensor options, FlexPoint systems offer a unique blend of precision, flexibility, and speed, to solve nearly any dimensional measurement challenge presented by large format parts.

Features:

  • Choice of TP20 or TP200 touch probe
  • Shop floor friendly
  • QVI ZONE3® premium CAD-based 3D metrology software

Rigid Body Design

The base unit of all FlexPoint Floor Model Series systems are made of massive granite members for thermal stability, load carrying capacity, and vibration isolation. All moving structures are made from either cast aluminum or extruded aluminum to provide rigidity for a wide range of sensor options and high speed motion. A wide bearing stance and air bearings on all axes ensure motion stability for repeatable positioning.

True Multisensor Advantage

FlexPoint systems support a large range of tactile and non-contact sensors: TP20, TP200, and SP25 contact and scanning sensors TeleStar® Probe and Line Scan Laser sensors Rainbow ProbeTM white light sensor.

QVI Video sensor

The unique QVI VersaFlexTM multisensor head introduces the concept of up to three simultaneously available sensors on one articulating probe head. Overhead time for exchanging and recalibrating sensors is eliminated with this arrangement.

Full Measuring Range

Careful design has enabled larger travel in a smaller footprint. The drive-side upright features a cast-in pocket, and the outboard leg is offset from the quill. These designs provide clearance for an articulating probe head to position on all sides of a part, maximizing measurement range within the compact footprint.

Thermal Compensation

Data is constantly fed to a thermal compensation system to ensure high accuracy, even in shop floor environments with significant thermal variation.

Powerful ZONE3 Software

QVI ZONE3® 3D-CAD based metrology software provides complete flexibility for multisensor measurements. An entirely graphical user interface, visual validation for every step, and graphical reporting make ZONE3 the easiest and most intuitive 3D metrology software available.  FlexPoint Floor Model Systems are offered in three base configurations, each with a choice of Y-axis range, to suit a wide variety of manufacturing needs.

]]> https://msimeasure.allanhawkins.net/flexpoint/feed/ 0 Benchmark 250 https://msimeasure.allanhawkins.net/benchmark-250/ Thu, 12 Jan 2017 23:46:37 +0000 http://msimeasure.com/?p=857

A compact, high-accuracy dimensional metrology system.

The VIEW Benchmark™ 250 is engineered for high accuracy in a compact benchtop configuration complete with VIEW’s dual magnification optics and metrology-grade construction.

The Benchmark 250 is designed for use on the production floor to provide precision measurements for process control. Its compact size and powerful software make the Benchmark 250 a versatile measurement system that can be easily configured as either a dedicated gauge for critical dimension measurements or as a general purpose vision measurement system for routine quality monitoring.



Key Features and Options



The Benchmark 250 is well suited to measure many types of components, including molded plastic parts, machined parts, electronic assemblies, semiconductor packages, fiber optic components, disk media substrates, recording head dies, or semiconductor wafers up to 150 mm in diameter.

]]> Benchmark 450 https://msimeasure.allanhawkins.net/benchmark-450/ Thu, 12 Jan 2017 23:39:17 +0000 http://msimeasure.com/?p=854

High-value, high-accuracy dimensional metrology system.

The VIEW Benchmark™ 450 delivers VIEW performance with generous measuring envelopes. Benchmark 450 embodies the ideal configuration of SMT assembly metrology when configured with VIEW’s unique Elements software.

The Benchmark 450 handles large form-factor parts with high precision in a rugged, shop-floor configuration with a small footprint. Its fixed bridge design separates the X and Y axis motions, allowing each to operate without any influence on the other. This arrangement provides the maximum mechanical integrity and accuracy in the stage motion.



Key Features and Options



Dual magnification optics and an optional through-the-lens (TTL) laser sensor make the Benchmark an ideal system for many applications including molded plastic parts, screen printer stencils, printed circuit boards, solder paste, epoxy glue dots, precision machined parts, and many others.

]]> Benchmark 624 https://msimeasure.allanhawkins.net/benchmark-624/ Thu, 12 Jan 2017 23:29:40 +0000 http://msimeasure.com/?p=851

Large transport, 3-axis measurement system.

The VIEW Benchmark™ 624 is a large capacity, fully automatic, 3-axis dimensional measuring system. The Benchmark 624’s moving bridge design creates an open work envelope for easy access to the measurement area and allows the part being measured to remain stationary at all times.

With its massive granite base and high precision fixed lens optical system, the Benchmark 624 provides the accuracy and reliability that you expect from a world-class metrology system.

]]> Benchmark XLT https://msimeasure.allanhawkins.net/benchmark-xlt/ Thu, 12 Jan 2017 23:25:03 +0000 http://msimeasure.com/?p=847

Extra large area dimensional metrology system.

The VIEW Benchmark™ XLT delivers VIEW performance and reliability in a large travel, non-contact, high precision metrology system.

The Benchmark XLT is designed to handle large area parts or nested groups of smaller parts using its moving bridge design. Advanced image processing allows the Benchmark XLT to operate with high speed, accuracy and robustness.



Key Features and Options:



The XLT offers extended travel ranging from 900 mm x 1500 mm to 1500 mm x 2000 mm to handle large area parts or nested groups of smaller parts. The XLT’s moving bridge design features an open work envelope for loading and unloading large parts.

Advanced optics, illumination, and image processing make the Benchmark XLT a world-class metrology system.

]]> Pinnacle 250 https://msimeasure.allanhawkins.net/pinnacle-250/ Thu, 12 Jan 2017 23:12:09 +0000 http://msimeasure.com/?p=844

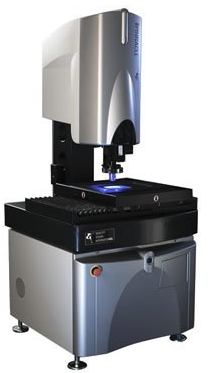

The Pinnacle 250 offers the highest accuracy and fastest speeds of the VIEW Micro-Metrology line. Its high performance and compact footprint make it VIEW Micro-Metrology’s most popular model.

The Pinnacle features a damped granite base and column, with passive vibration isolation. A precision compound X-Y stage with high-speed linear motor drives provides velocity of 400 mm / sec and acceleration of 1000 mm / sec2. This combination of high acceleration and high velocity enables the high throughput required for near-line process monitoring. The rugged and compact design of the Pinnacle lends itself to installation in either a Q/A lab or at an inspection station in the manufacturing line.



Key Features and Options



The Pinnacle is ideal for measurement of small, close tolerance parts, particularly parts with a high density of features, such as hard disk drive suspensions, printer heads, precision stampings, leadframes, ball-grid arrays, and chip scale packages.

The Pinnacle can be equipped with an optional through-the-lens or offset mounted laser for added flexibility in Z-axis measurements. Pinnacle models can also utilize the optional SpectraProbe™ offering sub-micron Z-axis measurement resolution.

The Pinnacle operates with one or more of VIEW Micro-Metrology’s standard metrology software packages:

  • VIEW Metrology Software (VMS™) which offers a wide array of standard measurement tools as well as a built-in scripting language to enable custom-functions.
  • Elements® CAD-to-Measure software provides automatic translation of 2-D CAD files in measurement programs, enabling very fast set-up of measurement routines for even the most complex parts.
]]> Pinnacle Plus https://msimeasure.allanhawkins.net/pinnacle-plus/ Thu, 12 Jan 2017 22:49:45 +0000 http://msimeasure.com/?p=841

Ultra-high accuracy dimensional metrology system.

Pinnacle+ Plus elevates Pinnacle performance to the next level. Pinnacle+ Plus features a rigid granite optical support structure and a high performance Z-axis motion assembly to produce the lowest possible uncertainty on micro-electronic parts and assemblies/

State-of-the-art linear motion control technology provides the fastest, most reliable platform available for high capacity operation in production environments ranging from clean rooms to factory floors.



Key Features and Options

Pinnacle+ Plus’ state-of-the-art linear motion control technology provides the fastest, most reliable platform available for high volume, high capacity operation in production environments ranging from clean rooms to factory floors.

The Pinnacle+ Plus operates with one or more of VIEW Micro-Metrology’s standard metrology software packages:

  • VIEW Metrology Software (VMS™) is standard on Pinnacle+ Plus and offers a wide array of standard measurement tools as well as a built-in scripting language to enable custom-functions.
  • Elements® CAD-to-Measure software is optional on Pinnacle+ Plus and provides automatic translation of 2-D CAD files in measurement programs, enabling very fast set-up of measurement routines for even the most complex parts.
  • Measure-X® metrology software is optional on Pinnacle+ Plus, guiding users through measurement routines with its intuitive point and click interfaces.
]]> Summit 600/800 https://msimeasure.allanhawkins.net/summit-600800/ Thu, 12 Jan 2017 22:42:22 +0000 http://msimeasure.com/?p=837

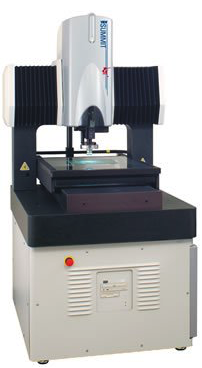

Large area, high-accuracy dimensional metrology systems.

The VIEW Summit systems are designed for components requiring a large work envelope and high accuracy. Based on the same core technologies of optics, high speed linear motors, and high resolution scales used in the VIEW Pinnacle, the Summit features a fixed bridge design. Separate X and Y axis motion systems ensure that neither influences the mechanical integrity of the other, while also enabling easy loading and unloading of large parts.

Available in three ranges of travel, the VIEW Summit is ideally suited to for measurement of large footprint parts, such as PCBs, stencils, flat panel displays, etching sheets and mark patterns, or nested groups of smaller parts. The Summit provides very high accuracy and high speed for shop floor process monitoring and quality assurance applications.



Key Features and Options:



The Summit systems are ideal for measurement of large format parts requiring high accuracy, such as solder paste stencils and screens, artwork, panelized printed circuit boards, flex circuits, and micro-etched parts.

Summit models can be equipped with an optional through-the-lens or offset mounted laser for added flexibility in Z-axis measurements. Summit models can also utilize the optional SpectraProbe™ offering sub-micron Z-axis measurement resolution.

]]>
